hwrf.wrf.ExternalWRFTask Class Reference

monitors a running wrf simulation More...

Detailed Description

monitors a running wrf simulation

This class represents a WRF simulation that is running in an external workflow. It reads the WRF configuration to internally generate namelist information, as if it was going to run the WRF itself. It then monitors the running or completed WRF simulation for simulation output, making it available as Product objects. All WRF outputs are available as UpstreamProduct objects.

The WRFSimulation object is available as the public "wrf" member variable and is initialized by the ExternalWRFTask constructor using arguments similar to the WRFSimulation constructor. The simulation start, end and timestep, if unspecified, are taken from the specified conf section's variables by the same name.

Definition at line 1296 of file wrf.py.

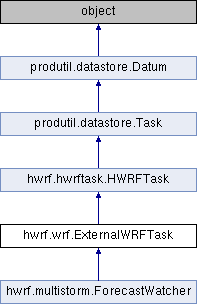

Inheritance diagram for hwrf.wrf.ExternalWRFTask:

Public Member Functions
def	__init__ (self, dstore, conf, section, wrf, relocate=False, kwargs)
	ExternalWRFTask constructor. More...
def	change_location (self)
def	wrf (self)
	returns the WRFSimulation object that describes the simulation More...
def	unrun (self)
	marks products as not having been delivered More...
def	clear_cached_products (self)
	clears cached Product objects More...
def	as_product
	Converts a WRFOutput to a Product. More...
def	products
	Iterate over products. More...
def	wrf_check
	Update file availability information. More...
def	update_state (self)
	Is the WRF running, completed or failed? More...
Public Member Functions inherited from hwrf.hwrftask.HWRFTask
def	__init__ (self, dstore, conf, section, taskname=None, workdir=None, outdir=None, storminfo=UNSPECIFIED, taskvars=UNSPECIFIED, kwargs)
	Creates an HWRFTask. More...
def	isfakestorm (self)
def	ismultistorm (self)
def	get_workdir (self)
	Returns the directory the class should work in, as set by the "workdir" metadata value. More...
def	set_workdir (self, val)
	Sets the directory the class should work in. More...
def	get_outdir (self)
	Gets the directory that should receive output data. More...
def	set_outdir (self, val)
	Sets the directory that should receive output data. More...
def	realtime (self)
	Is this job a real-time forecast job? More...
def	redirect (self)
	Should subprograms' outputs be redirected to separate files?
def	scrub (self)
	Should temporary files be deleted as soon as they are not needed?
def	tvset (self, opt, val)
	Sets a taskvar option's value. More...
def	tvdel (self, opt)
	Deletes an object-local value set by tvset. More...
def	tvget (self, opt)
	Gets a taskvar's value. More...
def	tvhave
	Is a taskvar set? More...
def	taskvars (self)
	The dict of object-local values used for string substitution. More...
def	confint
	Alias for self.conf.getint for section self.section. More...
def	confstr
	Alias for self.conf.getstr for section self.section. More...
def	conffloat
	Alias for self.conf.getfloat for section self.section. More...
def	confbool
	Alias for self.conf.getbool for section self.section. More...
def	confget
	Alias for self.conf.get for section self.section. More...
def	confitems
	Alias for self.conf.items for section self.section. More...
def	confstrinterp (self, string, section=None, kwargs)
	Alias for self.icstr for backward compatibility. More...
def	conftimestrinterp (self, string, ftime, atime=None, section=None, kwargs)
	Alias for self.timestr for backward comaptibility. More...
def	confraw
	Get a raw configuration value before string expansion. More...
def	icstr (self, string, section=None, kwargs)
	Expands a string in the given conf section. More...
def	timestr (self, string, ftime, atime=None, section=None, kwargs)
	Expands a string in the given conf section, including time vars. More...
def	getdir
	Alias for hwrf.config.HWRFConfig.get() for the "dir" section. More...
def	getexe
	Alias for hwrf.config.HWRFConfig.get() for the "exe" section. More...
def	getconf (self)
	Returns this HWRFTask's hwrf.config.HWRFConfig object. More...
def	getsection (self)
	Returns this HWRFTask's section name in the HWRFConfig. More...
def	log
	Obtain a logging domain. More...
def	inputiter (self)
	Iterates over all inputs required by this task. More...
Public Member Functions inherited from produtil.datastore.Task
def	__init__ (self, dstore, taskname, logger=None, kwargs)
	Task constructor. More...
def	jlogfile (self)
	returns the jlogfile logger. More...
def	postmsg (self, message, args, kwargs)
	same as produtil.log.jlogger.info() More...
def	setstate (self, val)
	Sets the state of this job. More...
def	getstate (self)
	Returns the job state. More...
def	strstate (self)
	A string representation of the job state. More...
def	gettaskname (self)
	Returns the task name part of the database ID, which is the same as the prodname. More...
def	products (self, args, kwargs)
	Iterate over the products this task produces. More...
def	log (self)
	Returns the logger object for this task. More...
def	clean (self)
	Cleans up any unneeded data used by this task. More...
def	unrun (self)
	Undoes the effect of run(). More...
def	run (self)
	Performs the work this Task should do and generates all products. More...
def	is_completed (self)
	Is this task complete? More...
def	completed (self)
	Read-only property: is this task completed? Same as is_completed() More...
def	runpart (self)
	Run some of this task's work, deliver some products. More...
Public Member Functions inherited from produtil.datastore.Datum
def	__init__ (self, dstore, prodname, category, meta=None, cache=30, location=None, kwargs)
	Datum constructor. More...
def	__enter__ (self)
	Acquires this object's thread lock. More...
def	__exit__ (self, etype, evalue, traceback)
	Releases this object's thread lock. More...
def	validate (self)
	Validates this object's Datastore, prodname and category. More...
def	getid (self)
	Returns the database ID of this datum. More...
def	getdatastore (self)
	Returns the datastore of this datum. More...
def	transaction (self)
	Creates, but does not lock, a Transaction for this datum's datastore. More...
def	getprodtype (self)
	Returns the product type of this Datum. More...
def	getprodname (self)
	Returns the product name part of the database ID. More...
def	getcategory (self)
	Returns the product category part of the database ID. More...
def	getlocation (self)
	Returns the "location" field of this Datum's database entry. More...
def	setlocation (self, v)
	Sets the "location" field of this Datum's database entry. More...
def	__hash__ (self)
	Integer hash function. More...
def	__str__ (self)
	Human-readable description of this Datum. More...
def	__repr__ (self)
	Python code-like description of this Datum. More...
def	__cmp__ (self, other)
	Compares two Datums' prodnames and categories. More...
def	set_loc_avail (self, loc, avail)
	Sets the location and availability of this Datum in a single transaction. More...
def	update (self)
	Discards all cached metadata and refreshes it from the Datastore. More...
def	__getitem__ (self, k)
	Returns the value of the specified metadata key or raises KeyError. More...
def	meta
	Return the value of a metadata key. More...
def	get
	Alias for self.meta() Returns the value of the specified metadata key or returns default if it is unset. More...
def	__setitem__ (self, k, v)
	Sets the value of the specified metadata key. More...
def	__delitem__ (self, k)
	Deletes the specified metadata key, which must not be "available" or "location". More...
def	__contains__ (self, k)
	Determines if a metadata key is set. More...
def	iteritems (self)
	Iterates over all metadata (key,value) pairs for this Datum, including "available" and "location". More...

Public Attributes
	state
Public Attributes inherited from hwrf.hwrftask.HWRFTask
	storminfo
	The hwrf.storminfo.StormInfo describing the vitals information for the storm processed by this HWRFTask. More...

Protected Member Functions
def	_get_cache (self, wrfout)
	Returns the product cached for the specified wrfout or None if not found. More...

Additional Inherited Members
Properties inherited from hwrf.hwrftask.HWRFTask
	workdir
	The directory in which this task should be run. More...
	outdir
	The directory in which this task should deliver its final output. More...
	conf
	This HWRFTask's hwrf.config.HWRFConfig object. More...
	section
	The confsection in self.section for this HWRFTask (read-only) More...
Properties inherited from produtil.datastore.Task
	state
	Read-write property: the job state. More...
	taskname
	Read-only property: the name of this task. More...
Properties inherited from produtil.datastore.Datum
	prodname = property(getprodname,None,None,)
	Read-only property, an alias for getprodname(): the product name part of the database ID. More...
	category = property(getcategory,None,None,)
	Read-only property, an alias for getcategory(), the category name part of the database ID. More...
	prodtype
	Read-only property, an alias for getprodtype(), the product type. More...
	did
	Read-only property, an alias for getid(). More...
	dstore
	Read-only property, an alias for getdatastore(), the Datastore in which this Datum resides. More...
	location
	Read-write property, an alias for getlocation() and setlocation(). More...

Constructor & Destructor Documentation

def hwrf.wrf.ExternalWRFTask.__init__	(		self,
			dstore,
			conf,
			section,
			wrf,
			relocate = False,
			kwargs
	)

ExternalWRFTask constructor.

Creates an ExternalWRFTask, as a wrapper around a WRFSimulation. The conf, section, moad, simstart, simend and timestep are passed on to the WRFSimulation. If simstart, simend, or timestep are None or missing, then they are taken from the configuration section for this task.

Definition at line 1311 of file wrf.py.

Member Function Documentation

def hwrf.wrf.ExternalWRFTask._get_cache (   self,   wrfout  )

protected

Returns the product cached for the specified wrfout or None if not found.

Parameters

wrfout

the hwrf.wrfbase.WRFOutput

Definition at line 1363 of file wrf.py.

Referenced by hwrf.multistorm.ForecastWatcher.as_product().

def hwrf.wrf.ExternalWRFTask.as_product	(		self,
			wrfout,
			relocate = False
	)

Converts a WRFOutput to a Product.

Returns a Product for a WRFOutput. The Product is cached in self.__prodcache and as_product() will return that cached value if one is available. Otherwise, a new one is created. Call clear_cached_products() to clear the cache.

Definition at line 1377 of file wrf.py.

Referenced by hwrf.wrf.ExternalWRFTask.products().

def hwrf.wrf.ExternalWRFTask.change_location

(

self

)

Allows subclasses to change self.location in the
constructor before product generation.

Definition at line 1340 of file wrf.py.

Referenced by hwrf.wrf.ExternalWRFTask.__init__().

def hwrf.wrf.ExternalWRFTask.clear_cached_products

(

self

)

clears cached Product objects

Clears the cache of WRFOutput -> Product mappings, used to speed up as_product. Calling this will ensure that any later calls to as_product will generate new Product objects.

Definition at line 1356 of file wrf.py.

def hwrf.wrf.ExternalWRFTask.products	(		self,
			domains = None,
			stream = None,
			time = None,
			relocate = False
	)

Iterate over products.

Iterates over all Products subject to the given constraints, or all Products if no constraints are given:

Parameters

domains	only these WRFDomains
stream	only these streams (strings)
time	only these times. The earliest output time that is not before the target time is yielded
relocate	passed to self.as_product. Forces an update of the product location

Definition at line 1406 of file wrf.py.

Referenced by hwrf.wrf.ExternalWRFTask.__init__(), hwrf.wrf.ExternalWRFTask.unrun(), and hwrf.wrf.ExternalWRFTask.wrf_check().

def hwrf.wrf.ExternalWRFTask.unrun

(

self

)

marks products as not having been delivered

Marks all products as not having been delivered. Does not delete anything.

Definition at line 1349 of file wrf.py.

def hwrf.wrf.ExternalWRFTask.update_state

(

self

)

Is the WRF running, completed or failed?

Scans the rsl.out.0000 file to automatically determine the state of the WRF simulation. Looks for "SUCCESS COMPLETE" and "FATAL CALLED" to detect successful completion, or calling of wrf_error_fatal. Sets self.state to produtil.datastore.COMPLETED, produtil.datastore.FAILED, produtil.datastore.RUNNING or produtil.datastore.UNSTARTED based on the contents of rsl.out.0000

Definition at line 1451 of file wrf.py.

def hwrf.wrf.ExternalWRFTask.wrf

(

self

)

returns the WRFSimulation object that describes the simulation

Returns the underlying WRFSimulation object that describes the simulation that is being run.

Definition at line 1343 of file wrf.py.

def hwrf.wrf.ExternalWRFTask.wrf_check	(		self,
			product = None,
			stream = None,
			time = None
	)

Update file availability information.

Calls produtil.datastore.UpstreamFile.check() to update the availability information on all products() that match the given constraints.

Parameters

product	only this product is checked
stream	only these streams (strings)
time	only these times. The earliest output time that is not before the target time is yielded

Definition at line 1435 of file wrf.py.

---

The documentation for this class was generated from the following file:

• /mnt/pan2/projects/hwrfv3/Samuel.Trahan/trunk/ush/hwrf/wrf.py
